TW-Line Heat Exchangers

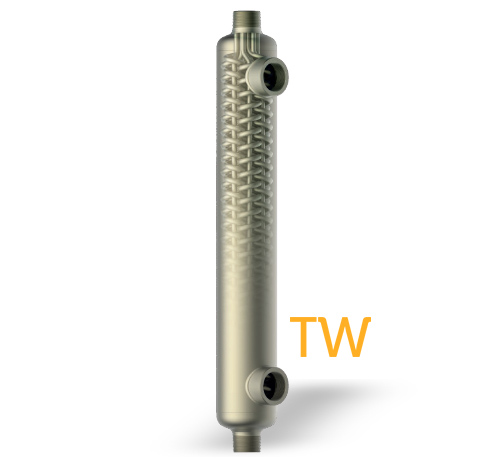

Shell and Coil Heat Exchanger
Made with pure Titanium, the innovative distinct TW Line design is a fusion of functionality and cutting edge thermal technology. The unique geometry of the TW Line optimizes flow turbulence and increases the heat transfer coefficient, and along with its versatile assembly, provides the perfect solution for your diverse application.
Ultralight Construction
Uncompromising Quality
Typical applications include
- Pools, spas, hot tubs heated by high temperature sources (steam, refrigerants, solar)
- Evaporators/Condensers
- Marine/saltwater application
- Applications with extremely high salt water concentration
- Corrosive fluids
Standard Materials
- Titanium coils
- Titanium Shell
Maximum Working Pressure
- Up to 150 PSI (10 bar) in Tubes/Shells
Maximum Working Temperature
- Up to 248°F (120°C) Tube Side
- Up to 248°F (120°C) Shell Side
Each intricate design is versatile, yet grounded in rigid standards
A unique heating coil geometry that captures and enhances the closest of temperature approach. A one-piece welded pure titanium masterpiece, intrinsically designed for the most aggressive of environments. Exceptional material strength and corrosion resistance, matched with unparalleled quality.
Distinct Advantages
- Total immunity to salt corrosion even at high temperatures
- Ultra-high thermal performance
- Coil expansion handles extreme temperature differences
- Light weight
- Condensate sub-cooling
Typical Swimming Pool Installation
- Boiler
- Heat Exchanger
- Swimming Pool
- Pump
- Filtration
- Chlorine Feeder
- Circulation Pump
- Flow Control Valve
- Gate Valve
- Check Valve
- Thermometer
- Safety Relief Valve
The product information and literature on this website are intended as a guideline for general purposes only. Models, dimensions, and operational parameters are subject to change at AIC's discretion. Contact AIC directly for updated design specifications.

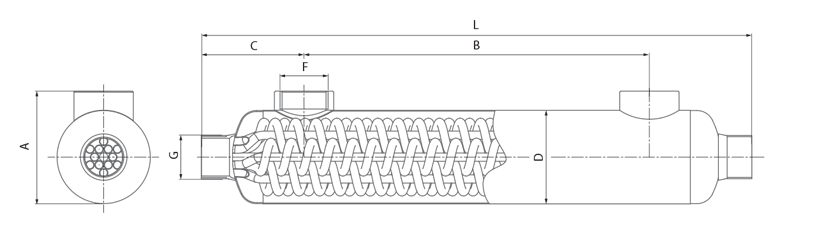

TW-Line Technical Product Specifications
