Gasketed Plate and Frame
Gasketed Plate and Frame
Gasketed P&F heat exchangers consist of a set of heating plates, separated by gaskets, all held together by a bolted frame.
This frame can be taken apart, and the plates/gaskets removed. Each heating plate is stacked against others, with gaskets in between, to create a plate pack, which is then kept in place by the frame. Plates consist specially formed chevrons which after precise plate-to-plate alignment form matrix of channels. Two fluids travel through the channels on opposite side of each plate exchanging heat.
![Gasketed Heat Exchangers](https://aicheatexchangers.com/wp-content/uploads/2021/01/familygasketed.png)
AIC offers wide range of gasketed plate and frame het exchangers for every type of duty and industry. Each heat exchanger is customized to meet a specific application.
![AW-Line Heat Exchanger](https://aicheatexchangers.com/wp-content/uploads/2021/02/jwqw1AAA.jpg)
AW-Line
Semi-Welded
![Heat Exchanger](https://aicheatexchangers.com/wp-content/uploads/2021/02/sds1AAA.jpg)
AV-Line
Plate Evaporators

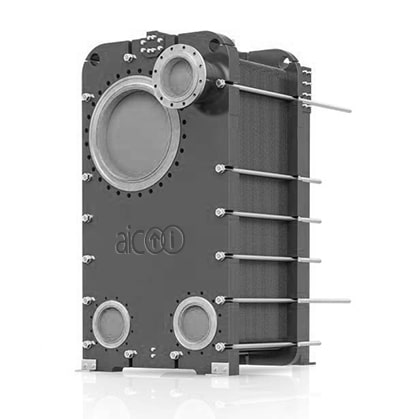

![AC-Line](https://aicheatexchangers.com/wp-content/uploads/2021/02/ds1AAA.jpg)
AC-Line
Plate Condensers
