A-Line Heat Exchangers

Plate and Frame Heat Exchangers

AIC is pleased to introduce the latest plate and frame technology to the heat transfer marketplace.

At the heart of the efficient A-Line Heat Exchanger system are a series of models available in a variety of materials and plate designs. This provides our clients with a flexible, reliable, cost-effective means of achieving precision heat transfer. These advantages make the A-Line Heat Exchanger the ideal choice for chemical, pharmaceutical, HVAC and food industries.

Explore all Plate and Frame Heat Exchangers

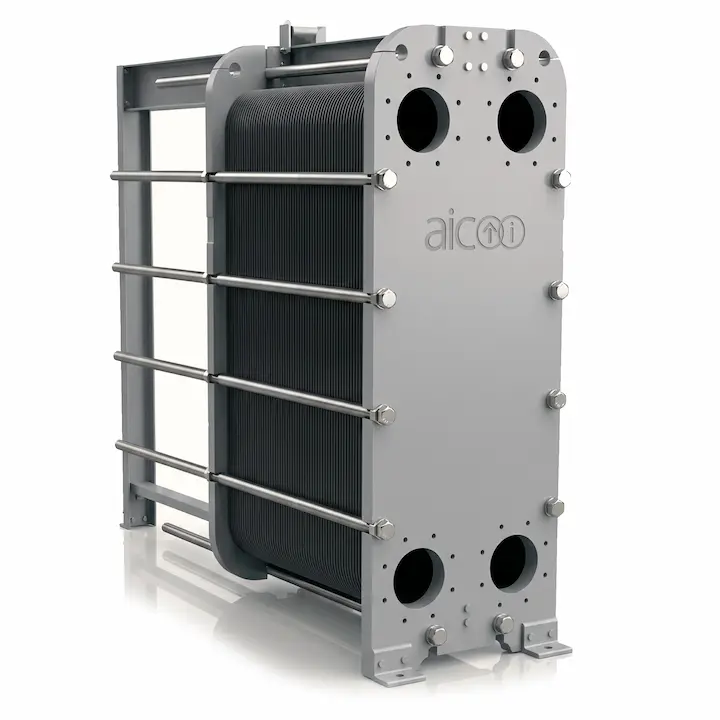

AIC A-Line gasketed plate and frame heat exchanger

We offer products of the highest quality and reliability to satisfy our customers’ most rigorous demands.

A-Line logo

Features and Benefits

Through extensive computational fluid dynamics analysis and testing, the corrugation pattern of our plates have been engineered for optimal thermal performance and structural strength

  • Plates with an extensive range of heat transfer areas
  • Varying plate thickness
  • Plate materials: SS 304, SS 316, Titanium, Hastelloy
  • Glued or Clipped on gaskets
  • Gasket materials: EPDM, NBR, VITON

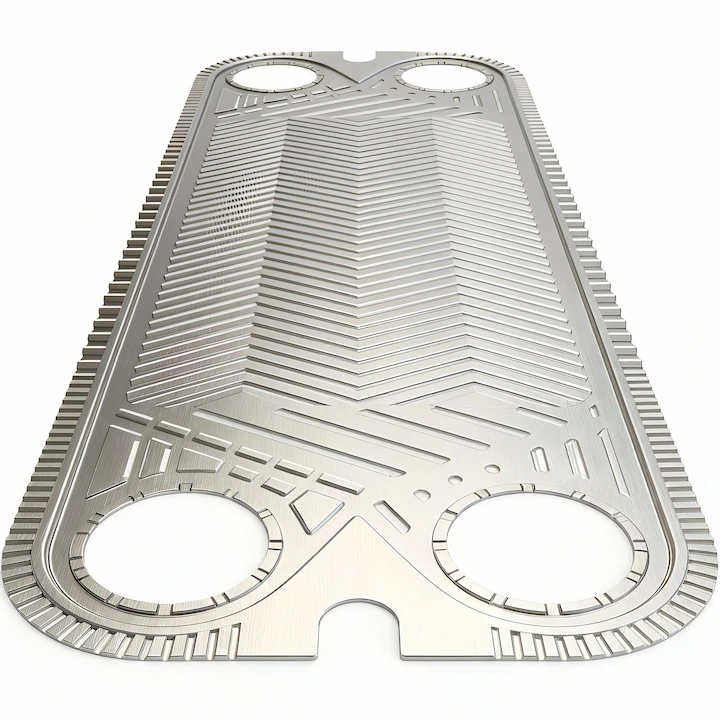

Gasketed heat transfer plate for an AIC A-Line plate and frame heat exchanger

  • Specifications

  • Technical

Looking for a custom solution?

Talk to us

Highly efficient heat exchangers

  • Maximum Working Parameters

    Pressure

    • Up to 450 PSI (3.1 MPa)

    Temperature

    • Up to 350°F (176°C)

    Standard Materials

    • SS304/SS316/Titanium heating plates
    • Carbon Steel Frame
    • EPDM/NBR Gaskets

  • Applications

    • Chemical Industry
    • Pharmaceutical Industry
    • HVAC Industry
    • Food and Beverage Industry
    • Marine Industry
    • Automotive Industry
    • District Energy

    • A-Line Technical Product Specifications

    Model Approximate Dimensions of Assembled Unit Area Per Plate Standard Connection
    Width Height Max Length
    inmminmminmm ft2m2inmm
    A40 7.0 178.0 24.0 610.0 32.0 813.0 0.46 0.04 1.0 25.0
    A80 10.0 254.0 30.0 762.0 35.0 889.0 0.81 0.08 2.0 50.0
    A90 13.0 330.2 25.5 648.0 47.1 1195.0 0.86 0.08 2.5 65.0
    A120 13.0 330.2 33.0 838.0 47.1 1195.0 1.29 0.12 2.5 65.0
    A130 13.0 330.0 33.0 838.0 49.0 1245.0 1.40 0.13 2.0 50.0
    A160 18.4 466.7 34.8 883.0 91.4 2322.0 1.72 0.16 4.0 100.0
    A200 13.0 330.0 43.0 1092.0 49.0 1245.0 2.15 0.20 2.0 50.0
    A230 13.0 330.2 47.3 1200.0 47.1 1195.0 2.47 0.23 2.5 65.0
    A250 28.4 720.7 48.8 1238.0 155.6 3952.0 2.69 0.25 6.0 150.0
    A260 18.4 466.7 44.0 1118.0 91.4 2322.0 2.80 0.26 4.0 100.0
    A40 7.0 178.0 24.0 610 32.0 813.0 0.46 0.04 1.0 25.0
    A280 20.0 508.0 49.0 1245.0 93.0 2362.0 3.01 0.28 4.0 100.0
    A360 18.4 466.7 53.5 1359.0 91.4 2322.0 3.87 0.36 4.0 100.0
    A450 20.0 508.0 66.0 1676.0 93.0 2362.0 4.84 0.45 4.0 100.0
    A460 18.4 466.7 63.0 1600.0 91.4 2322.0 4.95 0.46 4.0 100.0
    A40 7.0 178.0 24.0 610 32.0 813.0 0.46 0.04 1.0 25.0
    A550 28.4 720.7 67.5 1715.0 155.6 3952.0 5.92 0.55 6.0 150.0
    A590 34.9 885.8 64.0 1626.0 156.4 3971.0 6.46 0.60 8.0 230.0
    A840 28.4 720.7 86.0 2184.0 155.6 3952.0 9.15 0.85 6.0 150.0
    A930 34.9 885.8 77.9 1978.0 156.4 3971.0 10.01 0.93 8.0 230.0
    A1080 34.9 885.8 86.3 2191.0 156.4 3971.0 11.62 1.08 8.0 230.0
    A1090 45.5 1155.7 91.0 2311.0 176.3 4477.0 11.73 1.10 14.0 350.0
    A1150 28.4 720.7 104.8 2661.0 155.6 3952.0 12.37 1.15 6.0 150.0
    A1400 34.9 885.8 100.0 2540.0 156.4 3971.0 15.06 1.40 8.0 230.0
    A1450 28.4 720.7 123.5 3137.0 155.6 3952.0 15.60 1.45 6.0 150.0
    A1750 45.5 1155.7 115.5 2934.0 176.3 4477.0 18.83 1.75 14.0 350.0
    A1850 34.9 885.8 123.1 3127.0 156.4 3971.0 19.91 1.85 8.0 230.0
    A2450 45.5 1155.7 140.0 3556.0 176.3 4477.0 26.89 2.45 14.0 350.0
    A3150 45.5 1155.7 163.9 4162.0 176.3 4477.0 33.89 3.15 14.0 350.0
    PLATES
    StandardOptional
    SS304TITANIUM PALLADIUM
    SS 316HASTELLOY C276, C22, B-2
    TITANIUMAVESTA 254 SMO
    NICKEL 201
    INCOLOY 825
    FRAME
    StandardOptional
    CARBON STEELSS304 SANDBLASTED
    EPOXY PAINTEDSS316 SANDBLASTED
    GASKETS
    StandardOptional
    NITRILEPTFE
    EPDMAFLAS
    VITONSILICON
    HYPALON
    CONNECTIONS
    StandardOptional
    THREADED NPT SS316LTRI-CLAMP SS316L
    RAISED FACE & STUDSTHREADED NPT TITANIUM
    LINED FLANGE SS316LINED FLANGE TITANIUM
    Design Parameters
    PRESSURE UP TO 450PSI (3.1MPa)
    TEMPERATURE UP TO 350°F (176°C)

    The product information and literature on this website are intended as a guideline for general purposes only. Models, dimensions, and operational parameters are subject to change at AIC's discretion. Contact AIC directly for updated design specifications.
