Cobrex Double Wall Heat Exchanger

Shell and Tube Copper Heat Exchanger

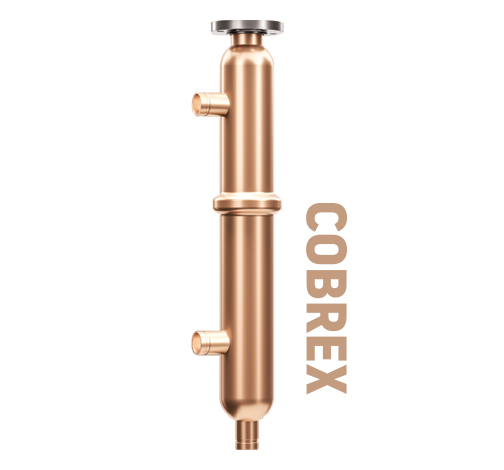

Cobrex is a straight, shell and double wall tube, heat exchanger with visual leak detection. A one-pass vertical design, it is constructed entirely of pure copper with internally corrugated tubes, and closely spaced directional baffles, for maximum heat transfer.

Cobrex is an ideal solution for tankless instantaneous, and semi-instantaneous, hot water generation.

Specifications Brochure
Features and Benefits
  • Double wall tubes and double tubesheet with visual leak detection minimize the risk of cross contamination
  • Option of Victaulic, Flange, or NPT connections
  • Vertical mounting, compact footprint, and lightweight design save space , and reduce time and overall cost of installation
  • Easily connected in parallel or series arrangements to extend system capacity
  • 100% copper welded construction offers biofouling resistance and antimicrobial properties, in addition to high thermal conductivity for efficient performance
  • Counterflow one-pass design, with internally grooved tubes and directional baffles, enhances turbulent flow and increases heat transfer rate

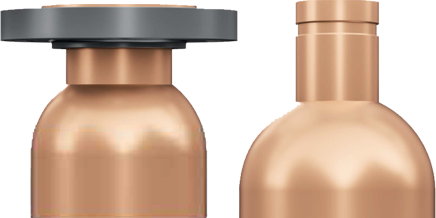

Flange or Groove/ Weld connections
Corbex Heat Exchangers
Corbex
Unique Double Wall System

Double wall tube with visual leak detection offers a higher degree of safety in the event of tube wall breach.

Contact Us
Corbex Heat Exchangers

Applications

  • Steam condenser
  • Domestic water heating by steam or boiler water
  • Instantaneous hot water heater
  • HVAC systems
  • Solar thermal water systems
  • Breweries

The product information and literature on this website are intended as a guideline for general purposes only. Models, dimensions, and operational parameters are subject to change at AIC's discretion. Contact AIC directly for updated design specifications.

Cobrex Technical Product Specifications



Dimensions
Cobrex 30 Cobrex 60
in mm in mm
A 42.51 1079.7 42.51 1079.7
B 24.6 624.6 24.6 624.6
D 5.6 141.4 5.6 141.4
E 1.5   2
F 2   2
G 3   3
Weight
lbs kg lbs kg
79 36 95 43

Standard Design Parameters
Tubes Shell
Temperature 176 °C 350 °F 120 °C 250 °F
Pressure 11 bar 160 psi 10 bar 150 psi

Materials of Construction

Shell, Tubes, Heads, Victaulic Nozzles: Copper

Victaulic Nozzles: Copper

Flanges: Stainless Steel

NPT Connections: Stainless Steel or Brass

Shell, Tubes, Heads : Copper Victaulic Nozzles : Copper Flanges,: Stainless Steel NPT Connections: Stainless Steel or Brass
