Pharmaceutical & Food Grade

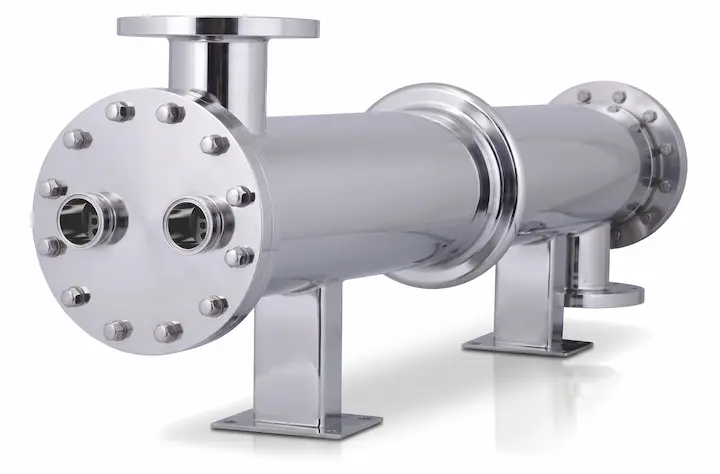

P-Line Sanitary Heat Exchangers
Pharmaceutical and Sanitary Heat Exchangers
P-Line – a series of exchangers for pharmaceutical and food industries and suitable for all other applications that are in compliance with FDA and 3A.
The unique construction of P-Line series exchangers reduces the risk of cross-contamination of the media even in the case of unsealing of the tubesheet-tube connections; it also ensures correct operation in applications requiring the highest standards.
Double tubesheet guarantees no contamination of clean fluid by heating / cooling media.
Features and Benefits
- FDA, cGMP, ASME, and 3A requirements
- Stainless Steel 316 construction
- Double tubesheet construction
- Construction without dead spots, minimizing possibility of microbial growth
- Polished to Ra < 0.5um
- Certified seamless tubes polished internally and externally
- One-, Two-, or Four-pass type interchangeable heads

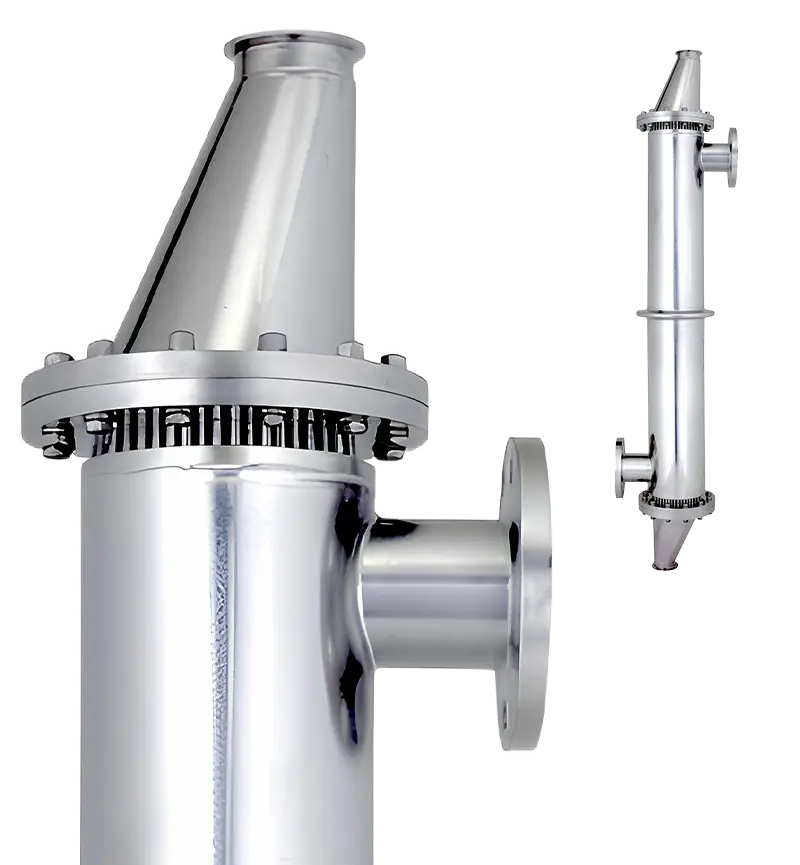

- Vertical or horizontal mounts available
Specifications
Technical
Looking for a custom solution?
Talk to usWe offer products of the highest quality and reliability to satisfy our customers’ most rigorous demands.
Maximum Working Parameters
- Standard Working temperature
- Up to 284°F (140°C) Tube Side (Viton Seal)
- Up to 250°F (121°C) Tube Side (Silicon Seal)
- Up to 397°F (203°C) Shell Side
- Standard Working pressure up to 145 PSI (10 bar) in Tubes and up to 232 PSI (16 bar) in Shell
Standard Materials
- Stainless steel 316L
Industries
Pharmaceutical, Biotech, Food Processing, Beverage, Production, Dairy, Cosmetics / Fragrances, Semiconductor, High Purity
Applications
Food & dairy Industry:
- Juice and syrup handling
- Chocolate and high viscosity products handling
- Brewery
- Milk cooling
- Pasteurization
Pharmaceutical:
- Clean steam
- Blood, plasma or media growth heating systems
- Water for injection systems (WFI)
- Process equipment

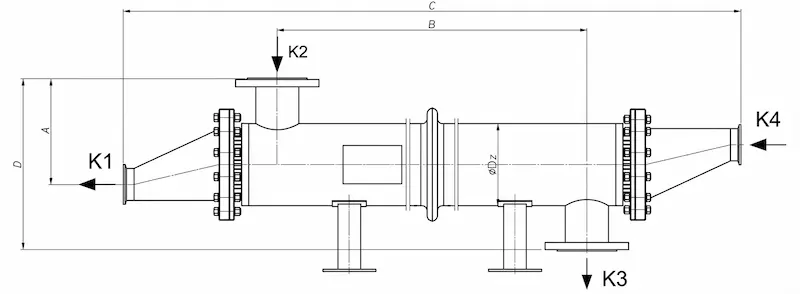

P-Line Technical Specifications
The product information and literature on this website are intended as a guideline for general purposes only. Models, dimensions, and operational parameters are subject to change at AIC's discretion. Contact AIC directly for updated design specifications.
