Scalable Efficiency for Demanding Processes
The ultimate in thermal flexibility and maintenance accessibility. AIC's Plate and Frame family is engineered for high-volume fluid handling and precision temperature control. Featuring a modular, gasketed design, these units allow for easy expansion, inspection, and cleaning, ensuring your system remains at peak performance throughout its lifecycle.

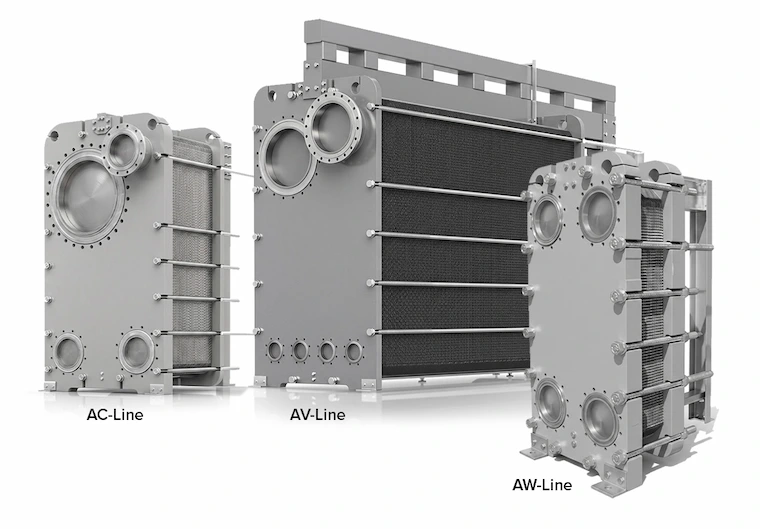

Each heat exchanger is customized to meet a specific application. Additional models include: AW-Line (Semi-Welded), AV-Line (Plate Evaporators), AC-Line (Plate Condensers).
The bolted frame design gives you full access to every plate and gasket. You can clean, inspect, or replace components quickly and keep your operation running.
Add plates, remove plates, and reconfigure the pack without replacing the unit. Your heat exchanger grows with your operation.
Corrugated plate surfaces create turbulent flow and increase heat transfer surface area that delivers more thermal performance in less space.
Our products and manufacturing process are fully certified to the highest extent of industry standards.
The Solution: Designed specifically for the stringent hygienic demands of the dairy, beverage, and food industries.
Benefits: Complies with FDA standards and offers optimal time-temperature control for pasteurization and CIP (Clean-In-Place) heating.

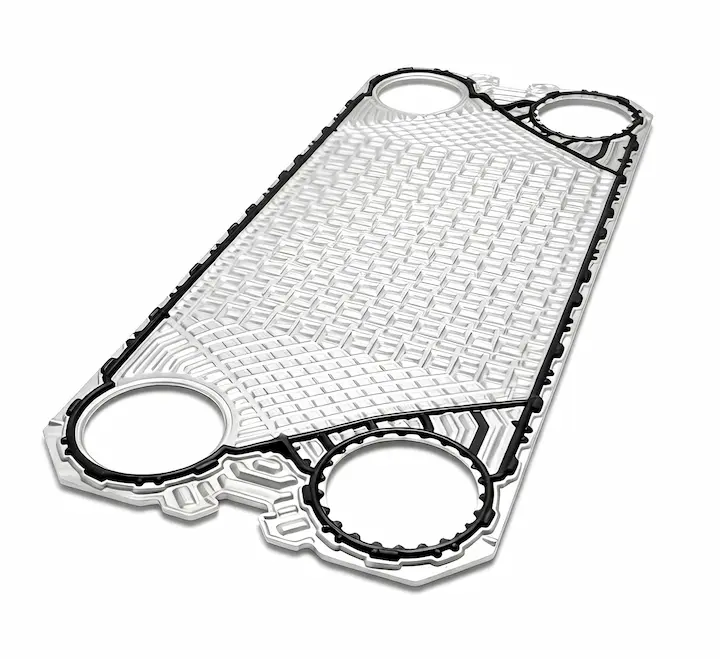

The Solution: Features plate gaps up to 20mm (0.8”) to allow for the unrestricted flow of viscous or “dirty” media.
Benefits: Eliminates particle obstructions in wastewater, pulp, and paper processes while maintaining high turbulent efficiency.
The Solution: A versatile, cost-effective series available in various plate materials and chevron designs for industrial use.
Benefits: Provides a flexible and reliable means of achieving precision heat transfer across HVAC, chemical, and district energy applications.

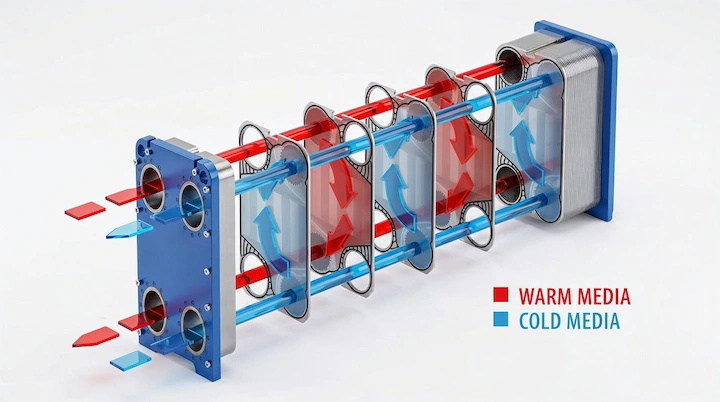

Working principle of a traditional plate and frame heat exchanger.
Gasketed plate heat exchangers for modern requirements
Compact, efficient, and built to last. Our gasketed plate heat exchangers use large corrugated plate surfaces to maximize heat transfer between liquids or gases that deliver outstanding reliability, lower energy costs, and a reduced environmental footprint across the full product lifetime.
Gasketed plate and frame heat exchangers consist of a set of corrugated plates separated by gaskets and held together by a bolted frame. Plates are stacked to form a plate pack, with two fluids travelling through alternating channels on opposite sides of each plate, exchanging heat across the full surface area. The result is exceptional thermal efficiency in a remarkably compact footprint.
The bolted frame design makes the unit fully accessible allowing plates and gaskets to be removed, cleaned, reconfigured, or replaced as your process requirements evolve. Suitable for a large variety of application such as liquid-to-liquid applications across HVAC, chemical, marine, food and beverage, sugar, and renewable energy.
Key features include:
Units can be cleaned via CIP (Clean-In-Place) or by disassembling the frame for manual plate scrubbing.
Our plate units can achieve approach temperatures as tight as 1°C to 2°C.
Yes, it is engineered for food, dairy, and pharmaceutical applications meeting strict FDA and 3-A standards.
It features larger channels specifically designed to prevent clogging from fibers or highly viscous fluids.
We utilize “Clip-on” glueless gaskets for faster, tool-free replacement during maintenance.
Yes, the modular frame allows you to add plates later to increase heat transfer surface area.
AIC offers a wide range of gasketed plate and frame heat exchangers for every type of duty and industry. Each heat exchanger is customized to meet a specific application.
