Double-Wall Copper Tube
COBREX Double Walled Heat Exchangers
Shell and Tube Copper Heat Exchangers

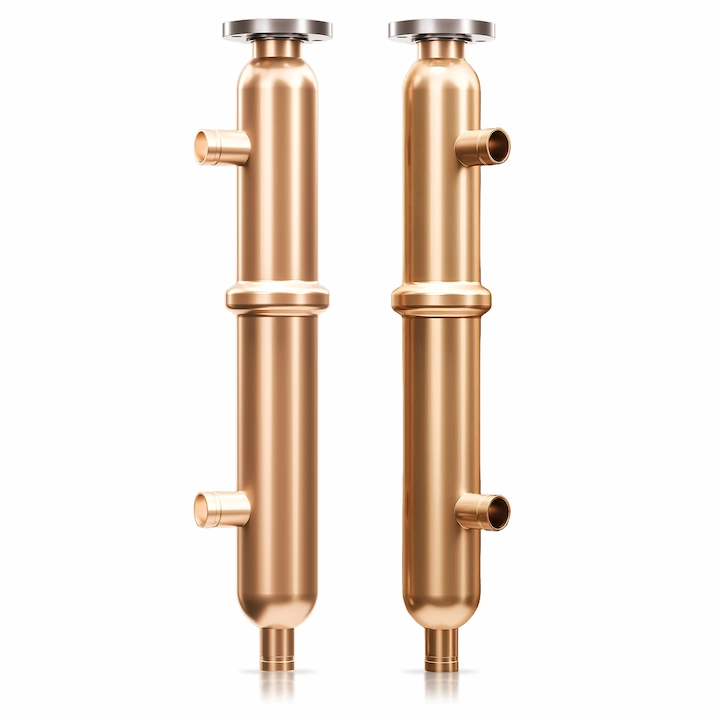

Cobrex is a straight, shell and double wall tube, heat exchanger with visual leak detection. A one-pass vertical design, it is constructed entirely of pure copper with internally corrugated tubes, and closely spaced directional baffles, for maximum heat transfer.
Cobrex is an ideal solution for tankless instantaneous, and semi-instantaneous, hot water generation.
Vertical mounting, compact footprint, and lightweight design save space, and reduce time and overall cost of installation.
Features and Benefits
- Double wall tubes and double tubesheet with visual leak detection minimize the risk of cross contamination.
- Option of Victaulic, Flange, or NPT connections.
- 100% copper welded construction offers biofouling resistance and antimicrobial properties, in addition to high thermal conductivity for efficient performance.
- Easily connected in parallel or series arrangements to extend system capacity.
- Counterflow one-pass design, with internally grooved tubes and directional baffles, enhances turbulent flow and increases heat transfer rate
- Flange or Groove/ Weld connections
Specifications
Technical
Looking for a custom solution?
Talk to usProven double-wall tube design and corrosion resistant and 100% copper construction
Maximum Working Parameters
Pressure
- Tubes: Up to 160 PSI (11 Bar)
- Shell: Up to 150 PSI (10 Bar)
Temperature
- Tube: Up to 350°F (176°C)
- Shell: Up to 250°F (120°C)
Standard Materials
- Shell, Tubes, Heads, Victaulic Nozzles: Copper
- Flanges: Stainless Steel
- NPT Connections: Stainless Steel or Brass
Applications
- Steam condenser
- Domestic water heating by steam or boiler water
- Tankless instantaneous hot water
- Semi-instantaneous hot water
- Hot water storage heaters
- HVAC systems
- Solar thermal water systems
- Breweries

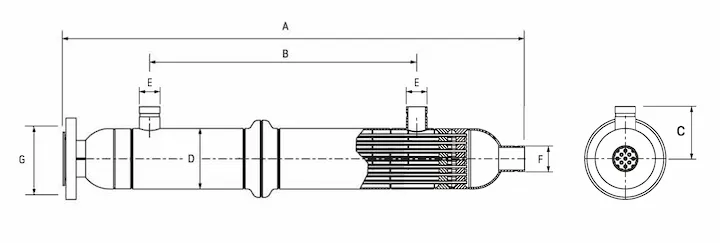

Cobrex Technical Product Specifications
The product information and literature on this website are intended as a guideline for general purposes only. Models, dimensions, and operational parameters are subject to change at AIC's discretion. Contact AIC directly for updated design specifications.
Unique Double-Wall System

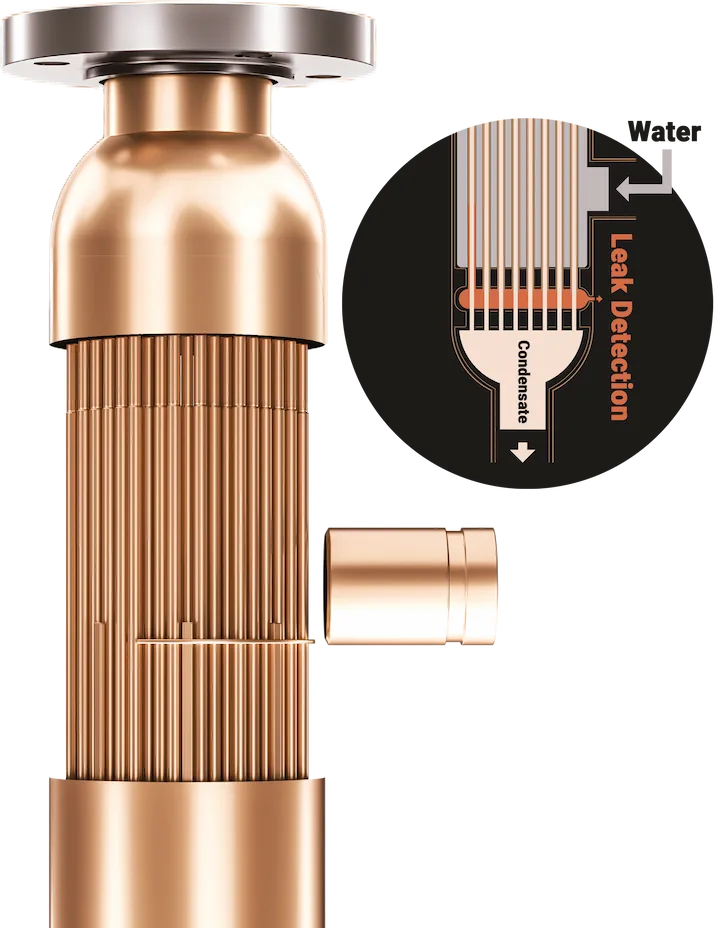

Double wall tube with visual leak detection offers a higher degree of safety in the event of tube wall breach.
COBREX has a unique double-wall corrugated tubes design. The inner tubes are helically corrugated to induce a turbulent flow of the steam that maximizes heat transfer and prevents scaling.

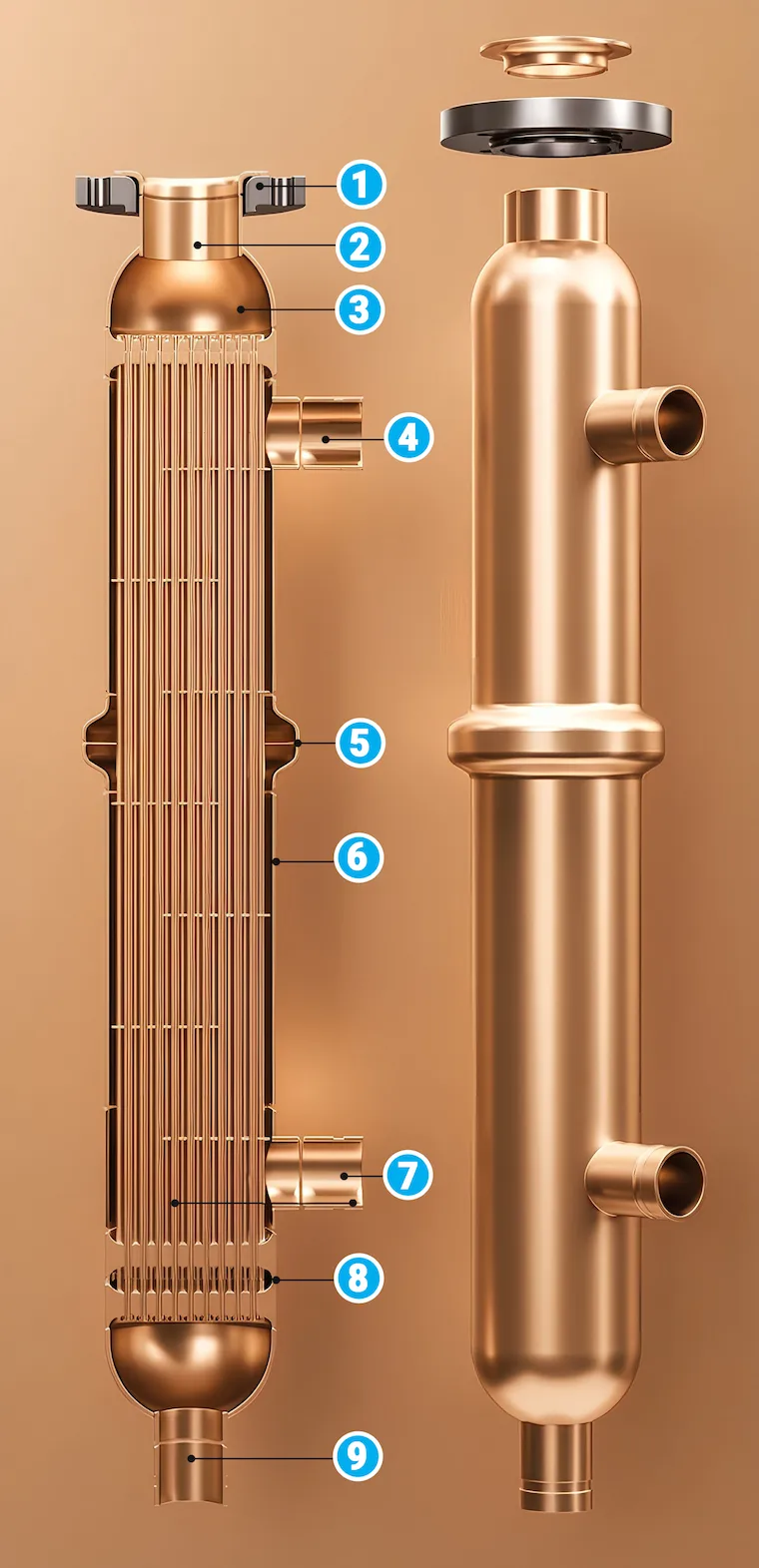

COBREX Highlights
- Stainless steel flange
- Steam inlet
- Complete copper welded construction
- Water outlet
- Expansion joint
- Compact Vertical installation
- Water inlet
- Double Tubesheet
- Condensate outlet
