Indirect Water Heaters
REX Water Heaters
Instantaneous Indirect Water Heaters

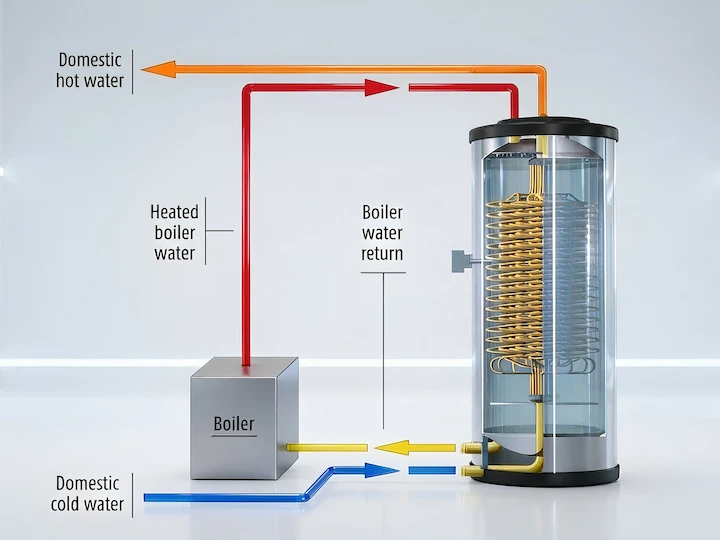

The new generation REX instantaneous indirect water heaters are engineered for high heating efficiency. REX heaters use the boiler to heat domestic water instantly upon demand. As the boiler water enters the tank (not the coils) it is stored, ready for a domestic water call.
REX heaters also act as a buffer tank to eliminate boiler short cycling. The boiler water is circulated in a closed loop system, thus extending boiler life.
The REX indirect instantaneous system offers high efficiency, long life and an economical way of heating domestic water as there is no stagnant water in the coils. It virtually eliminates bacterial growth.
Features and Benefits
The REX heaters are an efficient solution for new projects and are ideal for retrofit applications to improve existing system performance and reduce installation costs.
REX heaters also act as a buffer tank to eliminate boiler short cycling. The boiler water is circulated in a closed loop system, thus extending boiler life. Excellent for close temperature approach applications.
Specifications
Technical
Looking for a custom solution?
Talk to usSuperior Hydrodynamics Improves Heat Transfer
Maximum Working Parameters
Pressure
- Up to 150 PSI (1.03 MPa)
Temperature
- Up to 375°F (190°C)
Standard Materials
- Completely passivated stainless steel construction.
Applications
- Domestic
- Commercial and industrial institutions such as hotels, apartments, schools, hospitals.
- Excellent for close temperature approach applications
REX Tanks Technical Product Specifications
The product information and literature on this website are intended as a guideline for general purposes only. Models, dimensions, and operational parameters are subject to change at AIC's discretion. Contact AIC directly for updated design specifications.
Our stainless steel indirect water heaters
Ideal for use with hydronic, radiant heat, and steam heating systems.
The stainless steel distributor is the key to proper distribution of the boiler water over the coil tubes to give peak heat transfer as the hot water cascades through the coils, providing greater turbulence as it reaches the bottom distributor plate.
Request Info
Constructed from stainless steel, the REX water heaters are built to last. All of the REX tanks are designed to be used for modular installations and all will fit through a 30 inch doorway.

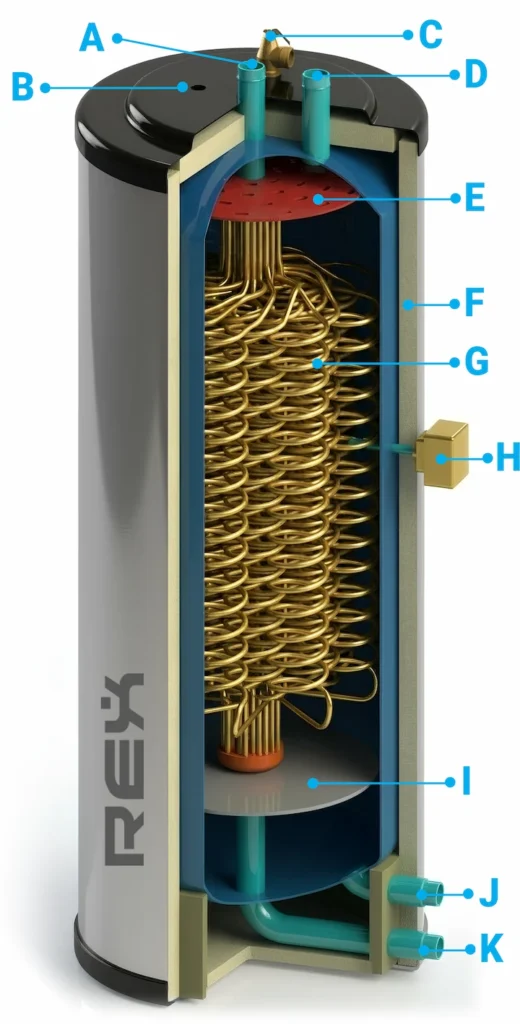

REX Construction
- Hot water out
- Safety valve
- Boiler water in
- Boiler water distributor
- Polypropylene jacket
- Heating coils
- Aquastat
- Cold water distributor
- Boiler water out
- Cold water in
- P/T
