Salt Water Pool Heaters

B6-Line Heat Exchangers

Shell and Straight Tube Heat Exchanger

B6-Series heat exchangers are fabricated with the distinctive AIC thin-tube, high-density design. Intended for use with high fluid flows and close approach temperatures, these robust, compact units are ideal for many residential and industrial applications.

B6 heat exchangers have a performance closer to their compact brazed plate type counterparts owing to the unique thin-tube design tailored for flows in pool applications. Their complete stainless steel welded structure ensures product strength and high quality performance.

Explore all Shell and Tube Heat Exchangers

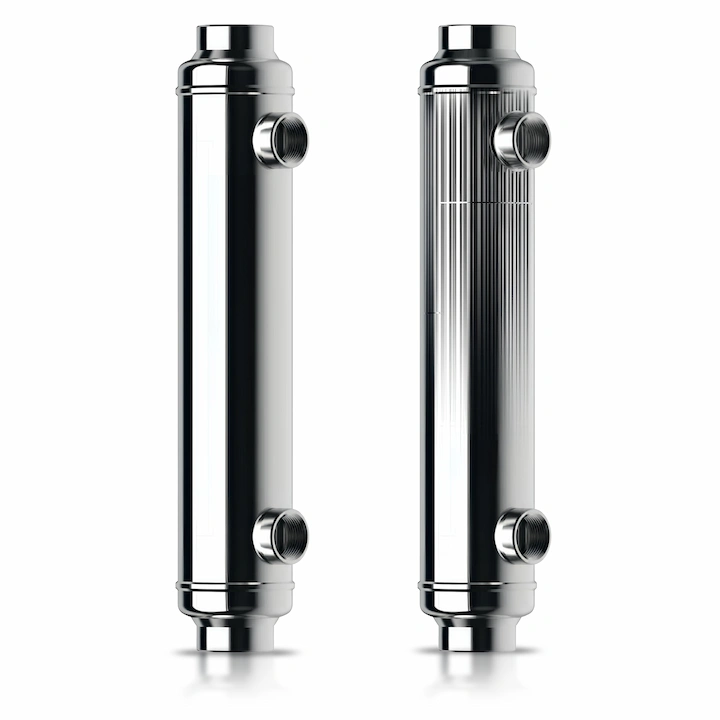

Two AIC B6-Line high density shell and tube heat exchangers for pool heating

The AIC series of Pool Heat Exchangers define innovation with attention to design excellence and uncompromising quality.

B6-Line logo

Features and Benefits

  • Dense heat transfer area
  • Low pressure drops
  • Specifically designed for low temperature sources
  • Vertical mounting
  • Quick and easy installation
  • Heat exchanger tube with colour gradient showing heat transfer in a pool heating line

    • Specifications

    • Technical

    Looking for a custom solution?

    Talk to us

    Exceptional Thermal Performance Uncompromising Quality

  • Maximum Working Parameters

    Pressure

    • Up to 150 PSI (1.03 MPa)

    Temperature

    • Up to 406°F (208°C)

    Standard Materials

    • Nicrom 24 (super austenitic alloy)

  • Applications

    • Salt water pools, spas, hot tubs
    • Transmission and engine coolers
    • Marine Oil coolers
    • Boiler sample coolers
    • Waste water heat recovery

    • B6-Line Technical Product Specifications

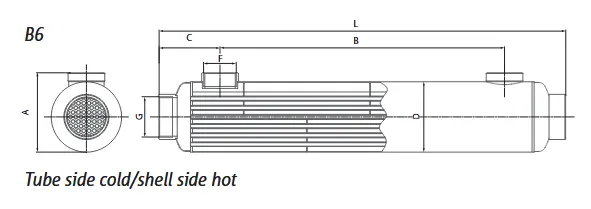

    Technical drawing of an AIC B6-Line heat exchanger with dimensionsAIC B6-Line heat exchanger sizes from B6-250 to B6-1000 with dimensions
    Hot Water Side (Shell) Cold Water Side (Tubes)
    Nominal Capacity Flow Pressure Drop Flow Pressure Drop
    Model kW Btu/Hr l/min USGPM kPa PSI l/min USGPM kPa PSI
    B6-280 82 280,000 125 33.0 22.4 3.3 250 66.1 14.8 2.2
    B6-390 114 390,000 260 68.7 30.6 4.4 520 137.4 26.8 3.9
    B6-700 205 700,000 215 56.8 14.3 2.1 430 113.6 25.0 3.6
    B6-1200 352 1,200,000 238 62.9 25.2 3.7 476 125.8 47.0 6.8
    Nominal values are based on heating water 180°F (82.2°C ) and return pool water 80°F (26.7°C )
    Dimensions Connections Heat Transfer Area
    L A B C Ø D F G
    Model mm in mm in mm in mm in mm in Shell Tubes ㎡ sq ft
    B6-280 400.0 15.7 94.5 3.7 240.0 9.4 80.0 3.1 80.0 3.1 1" 1 1/2" 0.47 5.10
    B6-390 373.0 14.7 117.6 4.6 193.0 7.6 90.0 3.5 103.6 4.1 1 1/2" 2" 0.60 6.50
    B6-700 622.0 24.5 117.6 4.6 442.0 17.4 90.0 3.5 103.6 4.1 1 1/2" 2" 1.15 12.40
    B6-1200 1075.0 42.3 117.6 4.6 895.0 35.2 90.0 3.5 103.6 4.1 1 1/2" 2" 2.14 23.00

    The product information and literature on this website are intended as a guideline for general purposes only. Models, dimensions, and operational parameters are subject to change at AIC's discretion. Contact AIC directly for updated design specifications.

    Experience AIC Pool Products

    A product with a purpose. Complete welded construction with high strength 316L stainless steel, underlined by distinctive densely packed precision tubing, this series is formulated for consistent, reliable performance with high fluid velocities and a close temperature approach.

    Request Info

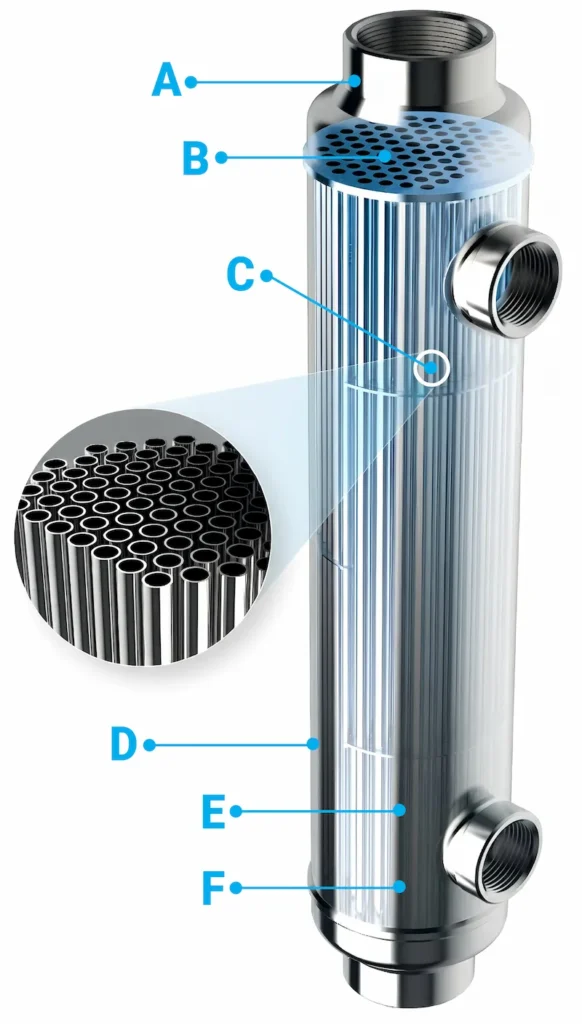

    AIC B6-Line heat exchanger with labelled features and a close-up of the tube bundle

    B6-Line Construction

    1. Complete SS316L welded design
    2. Pool water on the tube side
    3. Densely packed 6mm precision tubing
    4. Heating source on the shell side
    5. Closely spaced baffles
    6. Passivated and externally electropolished
