C-Line Titanium Pool Heat Exchangers

Swimming Pool Heat Exchangers

AIC introduces the C-Line, a contemporary line of heat exchangers designed for the most demanding swimming pool applications. Featuring a titanium coil and thermoplastic components, for enhanced corrosion resistance, the C-Line is the new refined standard in pool performance.

Explore all Legacy Models

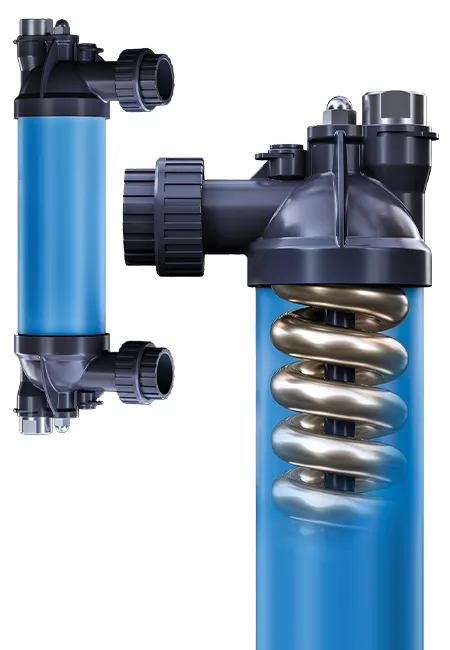

AIC C-Line titanium pool heater

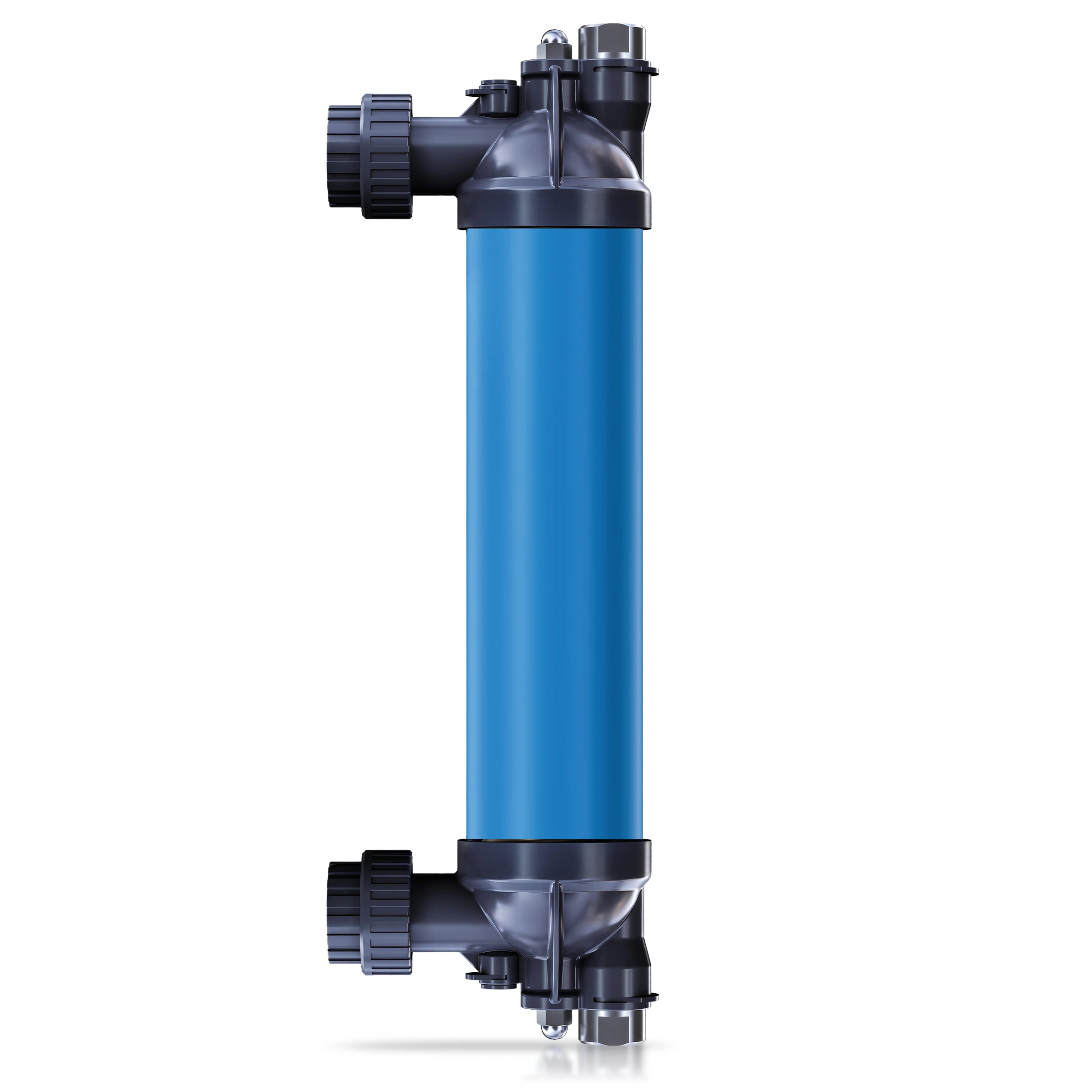

Available in three power outputs, C-line pool heat exchangers are designed to perform in a variety of swimming pool applications.

  • Specifications

  • Technical

Looking for a custom solution?

Talk to us

C-Line Titanium Coil Heat Exchangers

  • Maximum Working Parameters

    • Tube Coil Side – Heating Water: 210°F at 70psi (99°C at 5bar)
    • Shell side – Pool Water : 120°F at 70psi (50°C at 5bar)

    Standard Materials

    • Titanium Coil
    • Plastic shell

  • Applications

    • Pools, spas and hot tubs
    • Applications with high chlorinated/saltwater concentrations

    • C-Line Technical Product Specifications

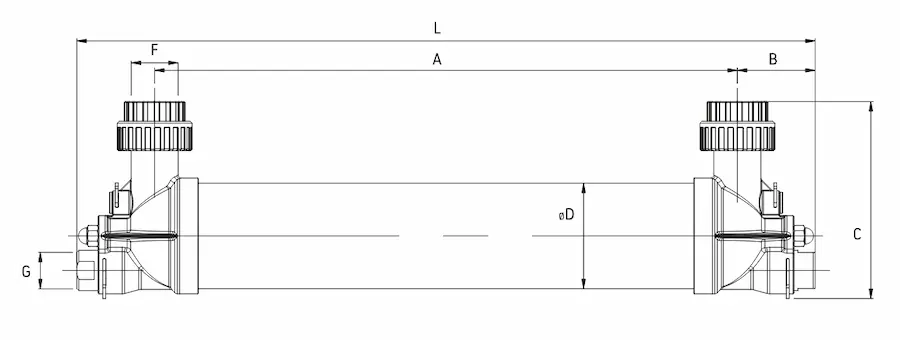

    Technical drawing of an AIC C-Line titanium pool heater with dimensions
    Nominal Capacity
    Specification C-150 C-250 C-350
    kw kBTU/h kw kBTU/h kw kBTU/h
    Nominal Capacity 44 150 78 265 100 340
    Heating Water Flow
    Specification C-150 C-250 C-350
    l/min USGPM/h l/min USGPM/h l/min USGPM/h
    Heating Water Flow 53 14 58 15 61 16
    Pool Water Flow
    Specification C-150 C-250 C-350
    l/min USGPM/h l/min USGPM/h l/min USGPM/h
    Pool Water Flow 300 77 300 77 300 77
    • Nominal Values are based on 140°F (78°C) temperature difference between incoming and heated water.
    • For general reference only.
    • Please consult our office for product selection verification
    Dimensions
    Dimension C-150 C-250 C-350
    mm in mm in mm in
    L 525 20.6 770 30.3 945 37.2
    A 362 14.2 607 23.9 782 30.8
    B 81 3.2 81 3.2 81 3.2
    C 205 8.0 205 8.0 205 8.0
    ∅D 110 4.3 110 4.3 110 4.3
    F - 1.5 - 1.5 - 1.5
    G - 1 - 1 - 1
    Pool Capacity*
    Specification C-150 C-250 C-350
    USGAL m3 USGAL m3 USGAL m3
    Pool Capacity* 13000 50 22500 85 32000 120
    • *Heat Exchanger Selection.
    • For general reference only.
    • Please consult our office for product selection verification.
    • Based on 180°F (82.4°C) supply water and specified nominal flows

    The product information and literature on this website are intended as a guideline for general purposes only. Models, dimensions, and operational parameters are subject to change at AIC's discretion. Contact AIC directly for updated design specifications.
