LENS MODULAR

LNS-Line Precision Shell & Tube Heat Exchangers

Precision, Versatility, Ingenuity in Heat Exchangers

A collaboration of practicality, versatility, durability, and a dash of novelty, the LENS heat exchangers break the mold with a new multi-functional, multi-dimensional, transformative ingenuity opening doors to unprecedented possibilities in fluid dynamics and process control.

The strength of the LENS series lies in its adaptive nature, allowing customization of standard products to optimize its effectiveness in varying applications. From hydronic heating to steam condensers, and all processes in between, the LENS offers clients unrivaled quality with the highest degree of flexibility.

Explore all Legacy Models
Two AIC LENS modular shell and tube heat exchangers

The rugged, yet refined, stainless steel LENS heat exchanger features elements that are intrinsic to the heightened aptitude of the product.

LENS Modular logo

Features and Benefits

  • Dense heat transfer area packed in a compact construction
  • High flows with low pressure drops
  • Small footprint
  • Multiple configurations of removable single or multi-pass heads
  • Possibility of large connections for low density vapours
  • Close temperature approach and condensate sub-cooling
  • Versatile working positions and connection orientation.

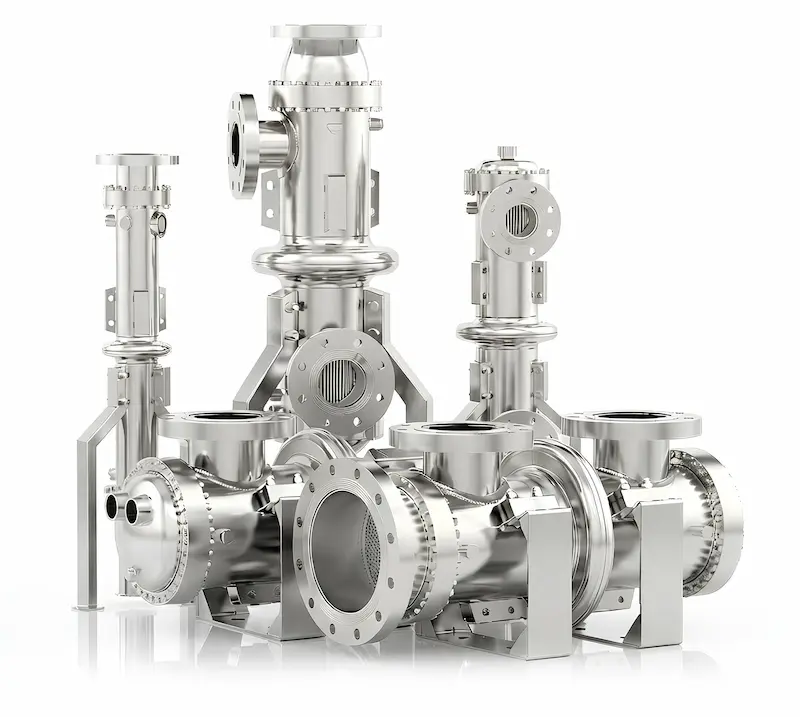

Assembly of AIC LENS modular shell and tube heat exchangers with connecting piping

Blend of technical excellence, creative ingenuity, and experience in thermal technology resulted in a carefully crafted AIC design.

Looking for a custom solution?

Talk to us

  • Maximum Working Parameters

    Pressure

    • Up to 150 PSI (10 bar) in Tubes
    • Up to 300 PSI (21 bar) in Shell

    Temperature

    • Up to 375°F (190°C) Tube Side
    • Up to 422°F (217°C) Shell Side

    Standard Materials

    • Stainless Steel 316L

  • Applications

    • Steam condensers (flooded heat exchangers)
    • Oil coolers
    • Gas Coolers
    • Chilled water systems
    • Process cooling
    • District energy
    • Hydronic heating and cooling

    • Original. Effective. Versatile.

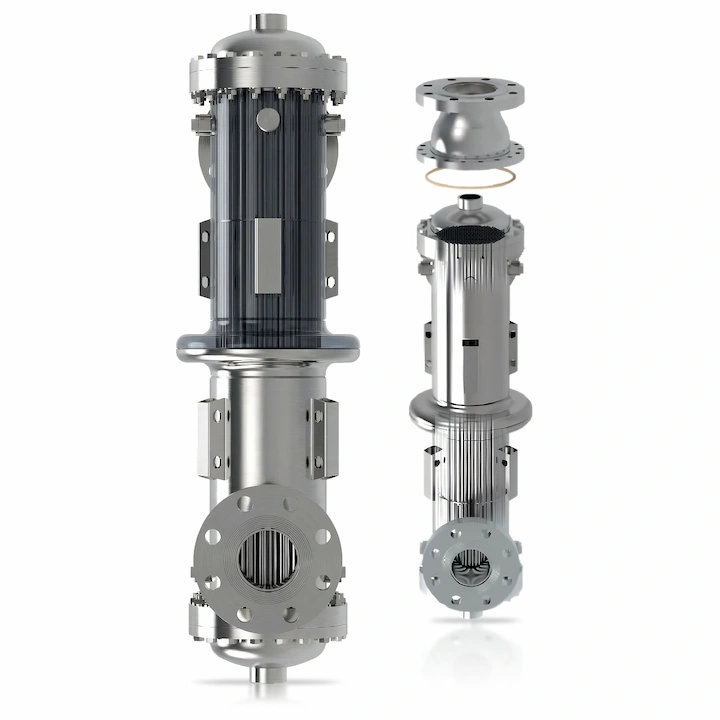

    Modular concept of a heat transfer system built with high attention to detail, rich in characteristics, and practical features.

    Effortlessly create a customized heating system using modular LENS components. Whether to optimize a single design, or to construct a multi-sectional, integrated structure, the potential is boundless.

    Surpassing conventional heat exchangers with its fresh, inventive design, the LENS heat exchanger system skilfully incorporates in all the ‘must-have’ thermal features valued in the heat recovery market, excelling in all competencies through uncompromising quality and fine craftsmanship.

    Request Info

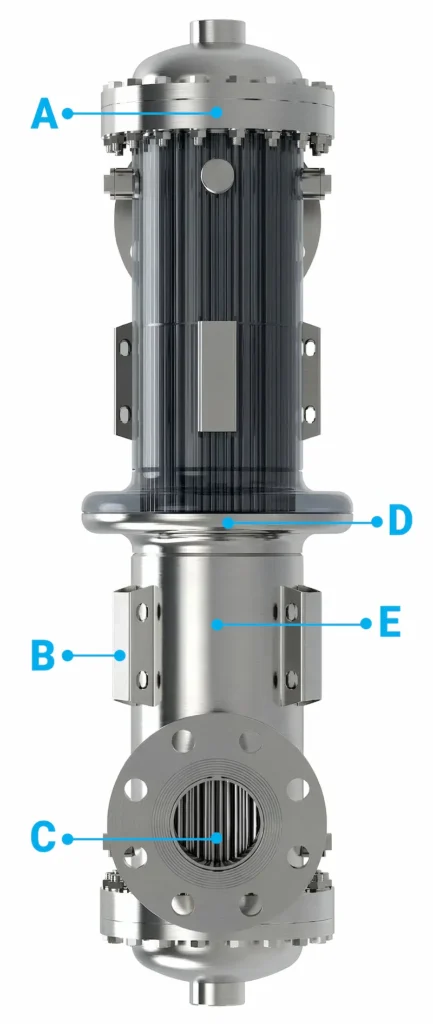

    AIC LENS modular shell and tube heat exchanger with labelled parts

    Vertical or Horizontal Positions

    While most heat exchangers are developed to function in a singular position, the LENS system is designed to operate in both horizontal and vertical modes.

    LENS Construction

    1. Removable interchangeable single or multi-pass reduction heads and high grade VITON gasket handles spectrum of fluids for chemical processes.
    2. Support brackets for vertical or horizontal installation.
    3. Densely packed 6mm precision tubing, and unique segmental baffles for even and complete flow distribution.
    4. Expansion joint handles extreme temperature differences.
    5. SS 316 L welded, fully passivated and externally electropolished.
